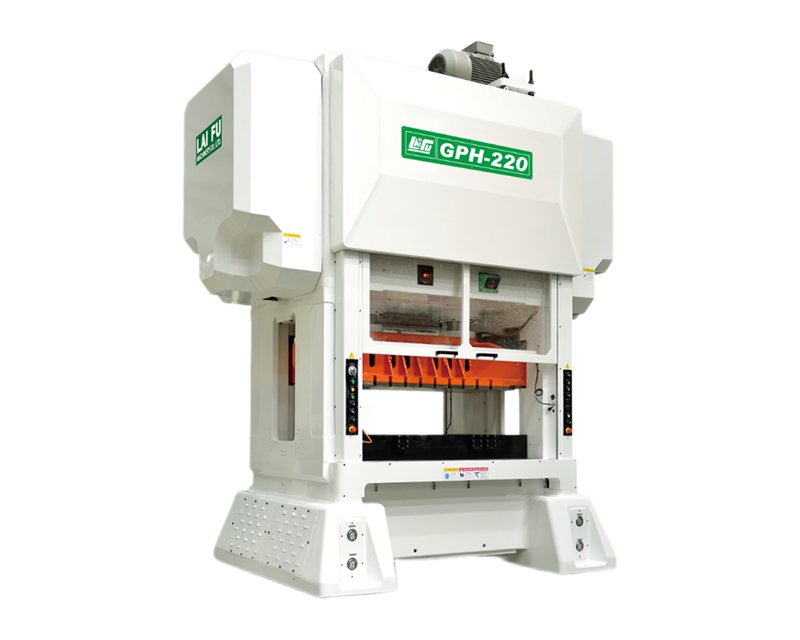

型 式 | Model | GPH-45T | GPH-65T | GPH-85T | GPH-125T | GPH-220T | GPH-300T | |
能力发生点 | Rated Tonnage Point | mm | 1.6 | 2.0 | 2.0 | 3.2 | 3.2 | 3.2 |
行 程 | Stroke Length | mm | 30 | 30 | 30 | 30 | 30 | 30 |
冲程数 | Number Of Strokes | SPM | 150-700 | 150-700 | 150-700 | 150-700 | 150-500 | 150-450 |
工作台面积 | Bolster Plate | mm | 750x550 | 950x650 | 1100x750 | 1400x850 | 1800x950 | 2200x1000 |
下料孔 | Bed Opening | mm | 550x125 | 700x125 | 800x150 | 1000x200 | 1300x250 | 1800x300 |
最大装模高度 | Slide Plate | mm | 750x380 | 950x420 | 1100x500 | 1400x600 | 1800x700 | 2200x900 |
模高调整行程 | Die Height | mm | 240-290 | 300-350 | 330-380 | 360-410 | 370-420 | 400-450 |
调模马达 | Modulation Motor | kw | 0.4 | 0.4 | 0.75 | 0.75 | 1.5 | 1.5 |
送料线高度 | Feed Line Height | mm | 135±15 | 160±15 | 175±15 | 195±15 | 200±15 | 210±15 |
主马达 | Main Motor | kw | 15 | 19 | 22 | 37 | 45 | 55 |
总重量 | Total Weight | T | 9.5 | 12.5 | 18 | 30 | 42T | 65T |
A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | |
GPH-45T | 2190 | 2665 | 1810 | 1510 | 1775 | 700 | 870 | 220 | 750 | 550 | 110 | 125 | 165 | 750 | 380 | 260 |
GPH-65T | 2340 | 2950 | 2010 | 1560 | 1845 | 900 | 1000 | 220 | 950 | 650 | 120 | 125 | 165 | 950 | 420 | 260 |
GPH-85T | 2560 | 3405 | 2180 | 1600 | 2000 | 1100 | 1040 | 300 | 1100 | 750 | 140 | 150 | 200 | 1100 | 500 | 360 |
GPH-125T | 2860 | 3590 | 2270 | 1800 | 1260 | 1180 | 1100 | 400 | 1300 | 850 | 160 | 200 | 240 | 1300 | 600 | 422 |
GPH-220T | 3650 | 4500 | 3875 | 1100 | 1600 | 2900 | 1940 | 400 | 1785 | 1800 | 1300 | 9500 | 240 | 200 | 1800 | 700 |
GPH-300T | 4230 | 5340 | 4445 | 1300 | 2000 | 3450 | 2100 | 510 | 1995 | 2200 | 1770 | 1000 | 300 | 250 | 2200 | 900 |
