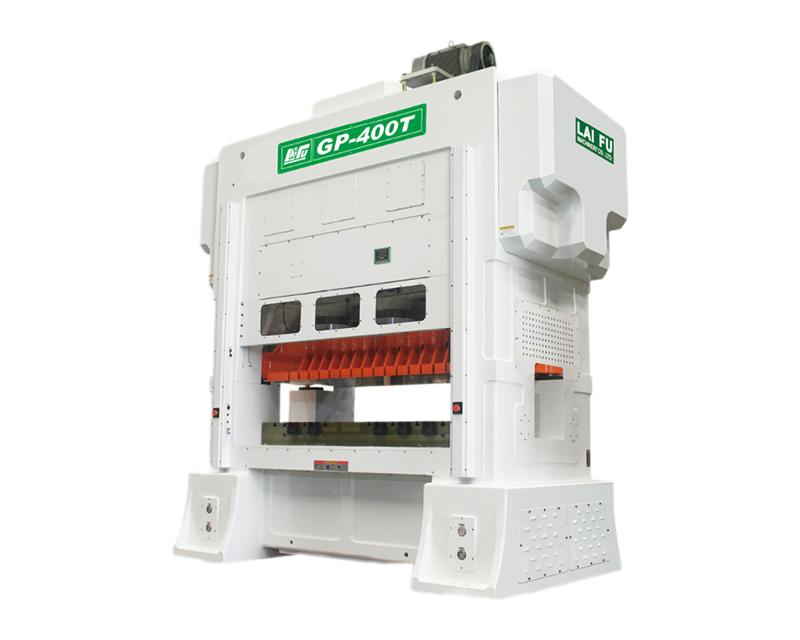

  • 龙门式六圆柱高速精密自动冲床
  • 龙门式六圆柱高速精密自动冲床

    • 0.00
      0.00
商品描述

机型

    Model

GP-85T

GP-125T

GP-160T

GP-220T

GP-300T

GP-350T

GP-400T

GP-450T

GP-550T

公称作用力

Nominal Press Capacity

tons

85

125

160

220

300

350

400(三点)

450(三点)

550(三点)

能力发生点

Capacity Occur Point

mm

2.0

3.2

3.2

3.2

2.0

2.0

2.0

2.0

2.0

行程长度

Stroke Length

mm

30

30

30

30

30

30

30

30

30

冲程数

Strokes Per Minute

S.P.M

200-500

150-500

150-500

150-450

100-350

100-300

100-300

100-300

60-260

最大装模高度

Die Height

mm

330-380

360-410

360-410

370-420

400-450

400-450

450-500

450-500

480-530

滑块调整数量

Slide Adjustment

mm

50

50

50

50

50

50

50

50

50

工作台面积

Bolster Plate

mm

1100x750

1400x850

1600x900

1900X1000

2300X1000

2500X1000

2800X1200

3000X1200

3300X1200

滑块面积

Slide Plate

mm

1100x500

1400x600

1600x600

1900x700

2300x900

2500X900

2800X1000

3000X1000

3300X1100

下料孔

Bolster Hole

mm

800x150

1000x200

1100x200

1300x250

1800x300

2000X300

2500X450

2700X450

3000X450

送料线高度

Linear Height

mm

175±15

195±15

200±30

200±30

210±30

220±30

230±30

270±30

270±30

主电机功率

Main Motor

KW

22

37

37

45

55

55

75

75

90

外形尺寸

Outline Dimension

mm

2530X1680X3935

3020X1800X4136

3300X1900X4250

3590X2100X4410

4060X2300X5105

4260X2300X5105

4640x2600x5405

4840X2600X5550

5300X2800X5650



A

B

C

D

E

F

G

H

GP-85T

2500

3890

3405

1040

1100

2180

1680

300

GP-125T

2840

4105

3550

1060

1200

2350

1800

400

GP-220T

3810

4530

3820

1175

1800

3100

2000

460

GP-300T

4050

5150

4320

1310

1920

3350

2180

510



I

J

K

L

M

N

O

P

GP-85T

1390

1100

800

750

150

140

1100

500

GP-125T

1590

1300

1000

850

200

160

1300

600

GP-220T

1890

1900

1400

1000

300

250

1900

750

GP-300T

2140

2200

1600

1000

300

260

2200

900
